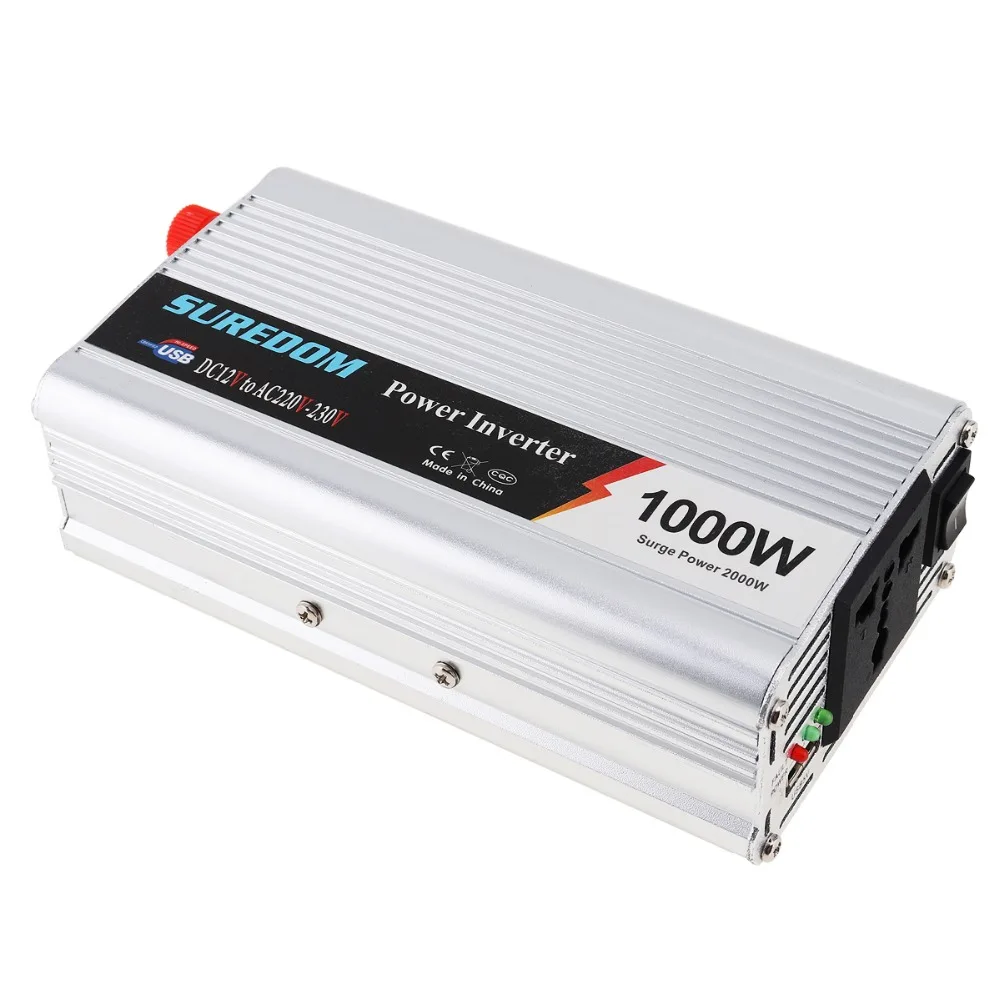

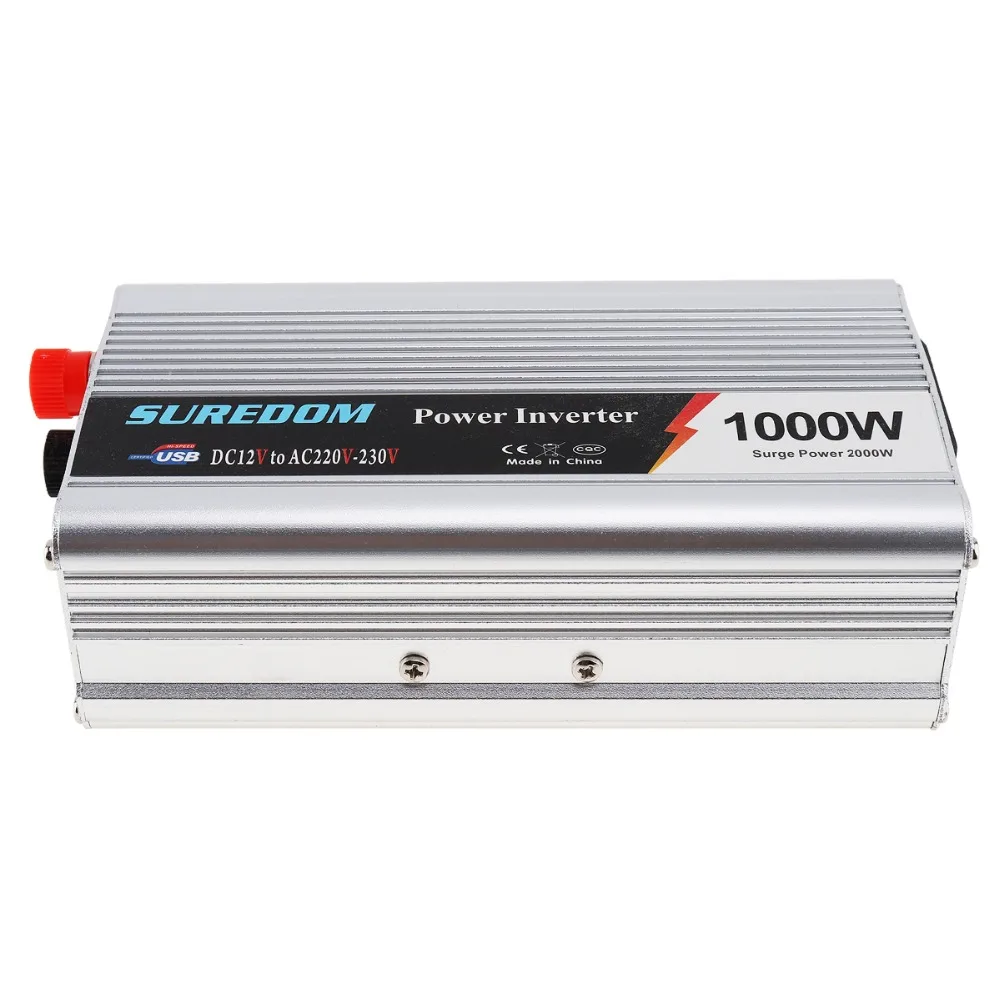

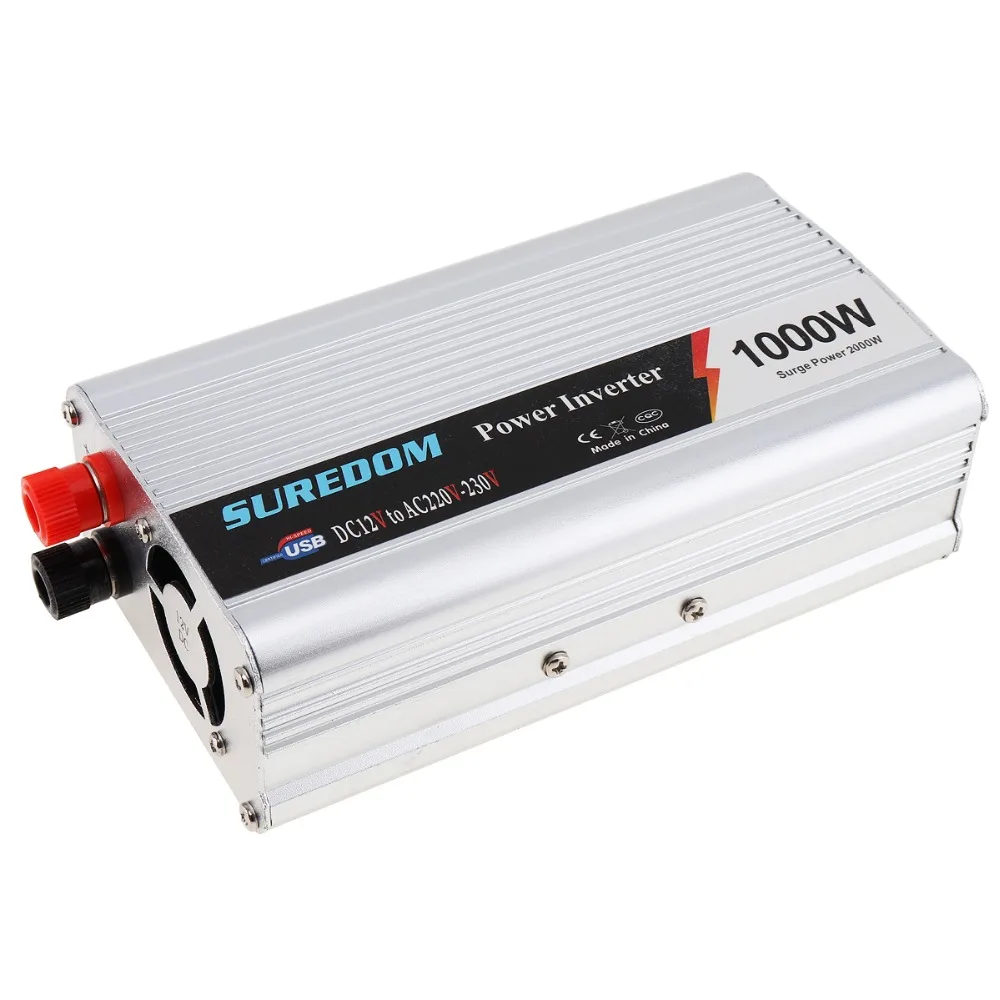

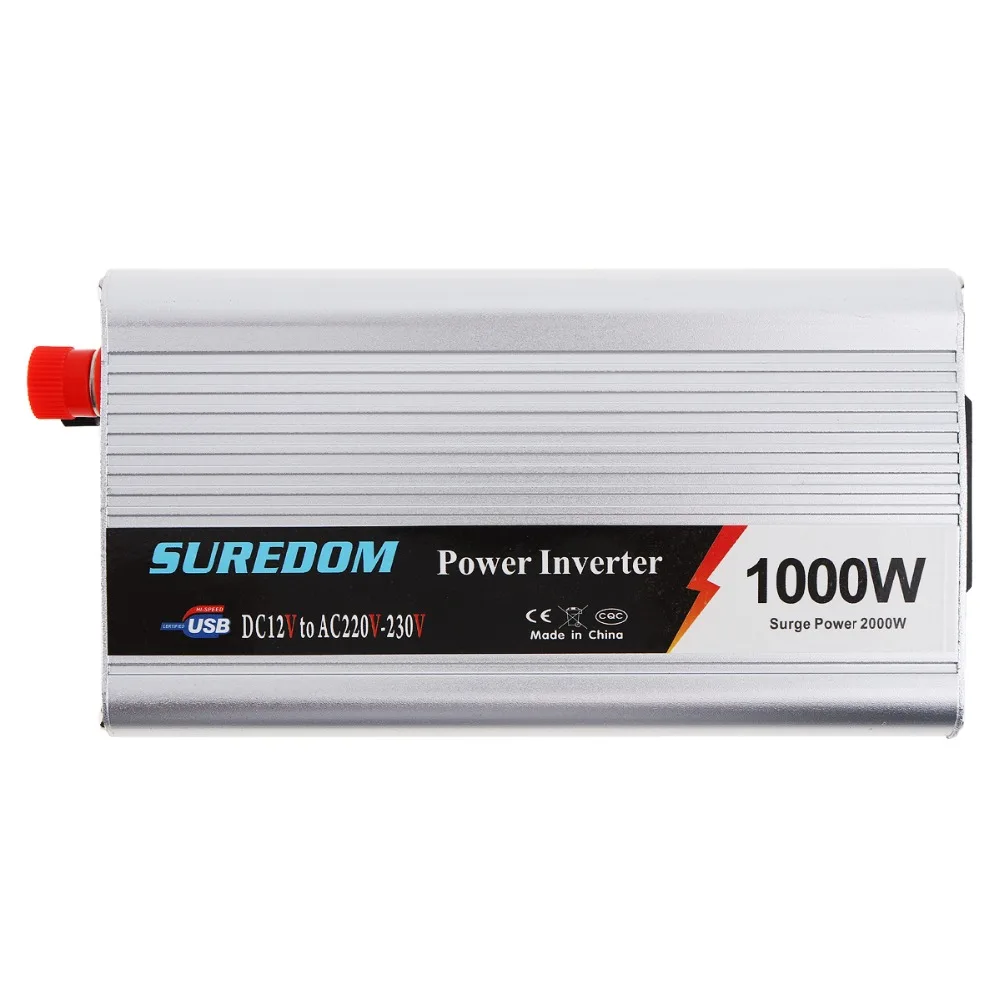

This Power Inverter Provides 760W continuous and 2000W surge peak power, extremely portable and lightweight space aluminum shell, perfect for vacations, work trips, and camping or anywhere that power is needed.
Note:
1) Please kindly note the real rated continuous power is 760W modified sine wave.
2) Don’t connect with products that require more than 760W to be powered.
3) Don’t recommend the use of device : air conditioning,electric drill, refrigerator.
4) Please do not leave the power inverter in the ON position while your car is off.
5) Please don’t use high power electronic devices such as microwave oven, iron pipe,
curling irons, electric heaters, etc.
Specifications:
Features:
– This inverter is light volume and reasonable design, it can be widely used for all kinds of electric equipments which power consumption which voltage are equal to AC 220V, such as cell-phone, portable computer, electric light, digital camera, vidicon, TV, CD player, DVD, electric fan, electric tool and so on.
– Convert DC 12V / 24V electricity source into AC 220V / 110V power.
– On/Off switch control the fan.
– Automatic thermal shutdown.
– Overload protection.
– Extra surge capacity.
– Low battery alarm/shut off.
– Reversing polarity protection.
– Does not have the pollution.
– Built-in cooling fan with low noise..
Input voltage: 10.5-24V DC
Output voltage: 110V – 240V AC (Inaccuracy: +-10%)
Power rating: 1000W (760W continuous)
Indicator light: Green power indicator,red fault indicator
Cooling: Fan
The shell maximum working temperature: ﹤ 75℃
Placement Guideline: For security and performance,the inverter should be placed under these conditions as follows:
– Dry: no water or get wet in the rain.
– Cool: the temperature between 0 celsius degree and 45 celsius degree.
– Ventilation: at least 2 inches (5cm)clearance above and on all sides if the inverter for proper cooling.
Usage of the inverter:
– Make sure the electrical power of the equipment you using is under the electrical power of the inverter.

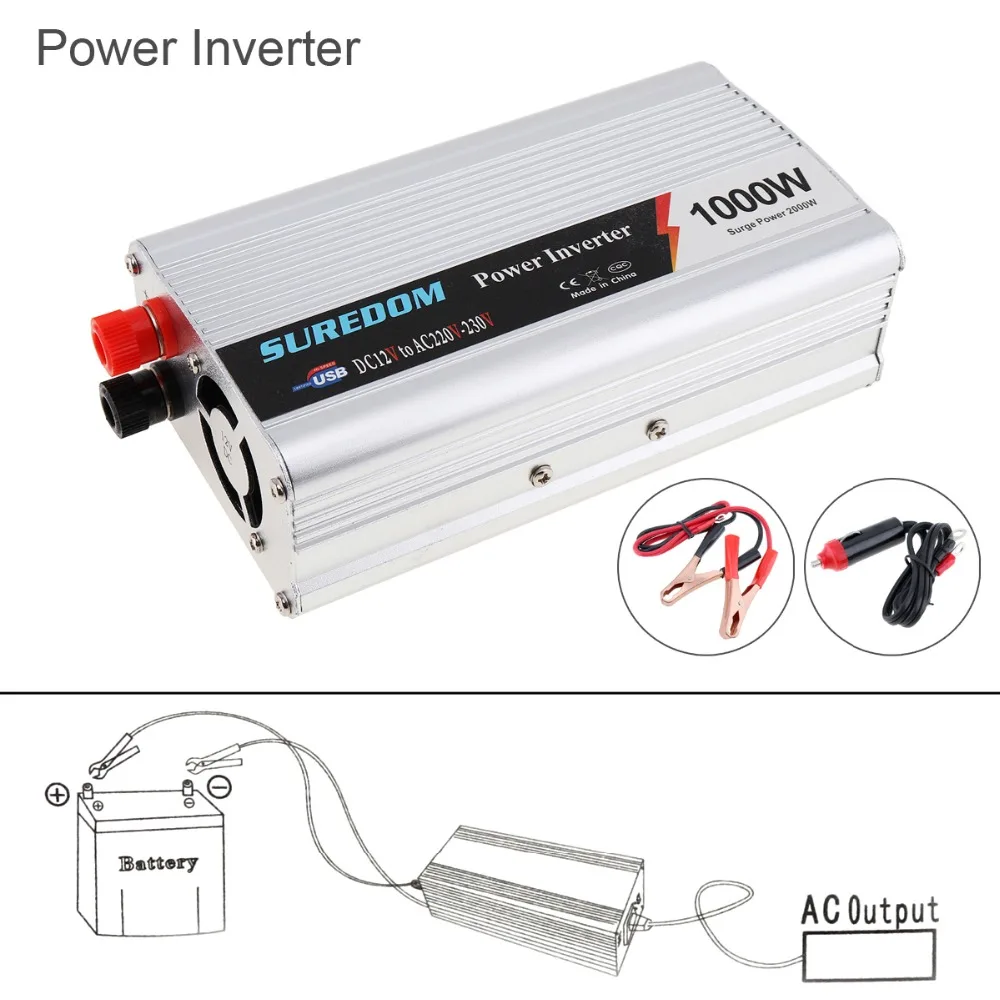

– Turn the inverter switch to (OFF) position,and then plug the inverter DC plug into the car cigarette lighter socket,make sure they are firmly linked.
– Switch the inverter on,the green light indicates that it is working normally.
– Charging for the electrics:The plug of the inverter plugs into the AC220V of mains socket,the red and black terminal connect to the Anode and Cathode of the 24V electrics.In the process of charging,the speed of cooling fan will change with the temperature.(The higher the temperature,the faster the speed:the lower the temperature,the slower the speed,or even stop rotation).
Warnings and Caution:
– The inverter input power and the nominal voltage of the battery should be consistent.
– The electrical equipment voltage and the nominal output and input voltage of the inverter should be consistent.
– The cigarette lighter plug wire or the included alligator clip leads of the inverter must distinguish polarity,red is ‘+’, black is‘-‘, or easily burn this product.
– When using the inverter power supply,the greater electrical power and the shorter the battery usage time,the greater the capacity of the battery must be selected.
– The output AC socket of inverter is only for power supply, can not be in parallel with the mains.
Note:
– The actual continuous power rate is about 760W 760W modified sine wave.
– Do not recommend the use of equipment:electric drill,coffee machines, refrigerator, air conditioning.
– Please do not leave the power inverter in the ON position while your car is off.
– Avoid placing the inverter into sunlight directly or next to heat-sensitive materials to protect inverter from getting too warm.
– Please understand device wattage usage Caution! Do not use high power electric devices such as hair dryers, microwave oven, iron pipe, electric heaters, curling irons, etc.
Package Weight : 757 G / 26.70 Ounces
Package Dimensions (L*W*H) : 220*150*60 MM / 8.66*5.91*2.36 Inches
Retail Packaging: Yes, Colored Box
Package Include:
1x Power inverter
1x Car Charger Adapter
1x Battery clamp
1x User’s Manual
