Microprocessor Control (CPU).
5 STAGES BATTERY CHARGERAUTOMATIC CONDITIONING/MAINTAINER:
• This is a fully automatic charger with 5 charge stages.
• Automatic charging protects your batteries from being overcharged. So you can leave the charger connected  indefinitely.
• 5-stage charging is a very comprehensive and accurate charging process that gives your batteries longer life and better performance compared to using traditional chargers.
1. Desulphation
The Desulphation stage may break down sulphation that occurs in batteries that have been left flat for extended periods of time, returning them back to full charge. sulfation occurs when lead-sulphate hardens and clogs up the battery cells.
2. Bulk (Constant Current)
Bulk mode charges the battery at the maximum rate (constant current) putting a large amount of power into batteries in a short amount of time. This stage will charge the battery to approximately 60%, until the voltage reaches 14.7 volts for 12V charger
3. Absorption (Constant Voltage)
The charge rate slows down so the battery can absorb more power and reach 80% charge. The voltage remains at a constant 14.7 volts for 12V charger while the current is gradually reduced until no more power can be added without over-charging the battery.
4. Float
The Float stage maintains the battery at 100% charge without overcharging or damaging the battery. This means the charger can be left connected to the battery indefinitely.
5. Stop – The Charger stop charging and cut-off output.
Share on facebook
Facebook
Share on twitter
Twitter
Share on pinterest
Pinterest

You may also like…

5 Stage Battery Charger | FOXSUR 12V Automatic Maintainer


Microprocessor Control (CPU).
5 STAGE BATTERY CHARGERAUTOMATIC CONDITIONING/MAINTAINER:
• This is a fully automatic battery charger with 5 charge stages.
• Automatic charging protects your battery from being overcharged. So you can leave the charger connected to the battery indefinitely.
• 5-stage charging is a very comprehensive and accurate charging process that gives your batteries longer life and better performance compared to using traditional chargers.
• 5-stage chargers are suitable for most battery types including Calcium, Gel and AGM, Wet batteries. They may also help restore drained and sulphated batteries.
• Types of batteries: Most types of lead acid batteries including Calcium, GEL and AGM, Wet
• Switch mode technology: Yes
• Polarity protection: Yes
• Output short protection: Yes
• Non battery link protection: Yes
• Over voltage protection: Yes
• Over temperature protection: Yes
• Cooling: Natural convection
• Input voltage: 100-240V AC, 50-60Hz
• Rated output: 12V DC, 0.8A/3.6A
• Minimum start voltage: 8.0V
• The 5 stages are: Desulphation ; Bulk; Absorption; Float, Auto-cut off
• Battery range: 4-100Ah
• Thermal protect: 65’C+/-5’C
• Efficiency: App. 85%.
• Compliant standards: CB,CE, IEC60335, EN61000, EN55014
• Dimension (L×W×H): 170×65×40mm

• Weight: 450g

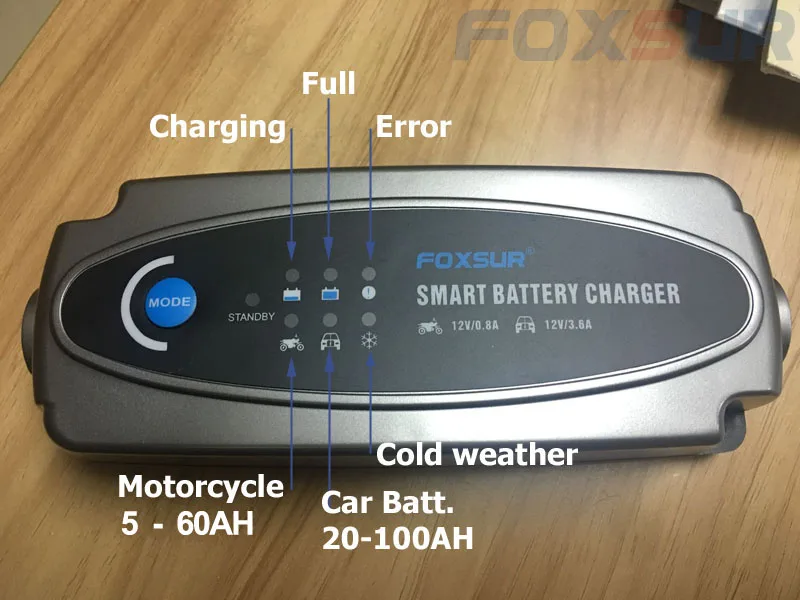

Motorcycle: for 5Ah – 60AH; Car: for 20AH -100AH

FOXSUR 5-Stages 12v Battery Charger

Cooling: Natural convection

smart battery charger

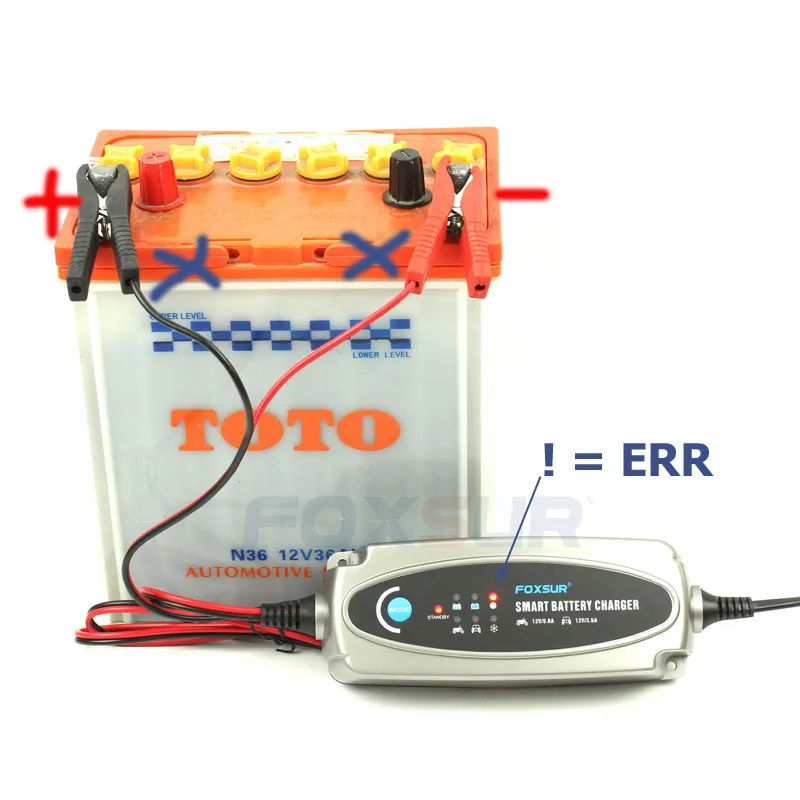

Reverse connection protection.

Battery desulfator

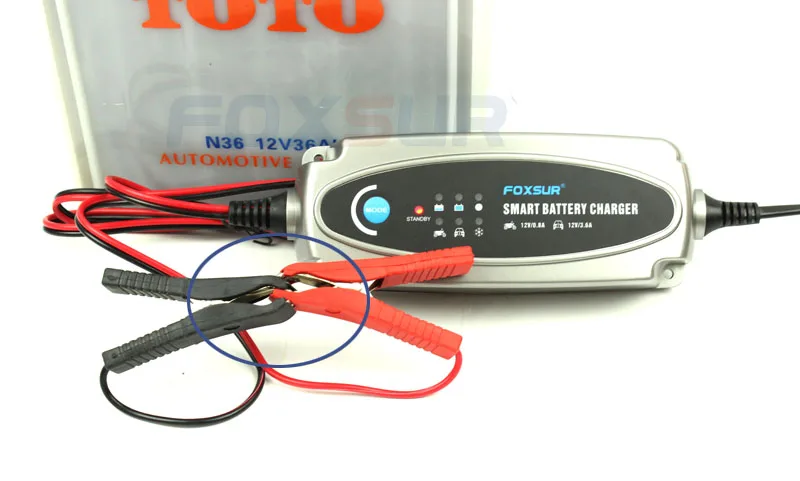

Output short-circuit protection

5 stage battery charger

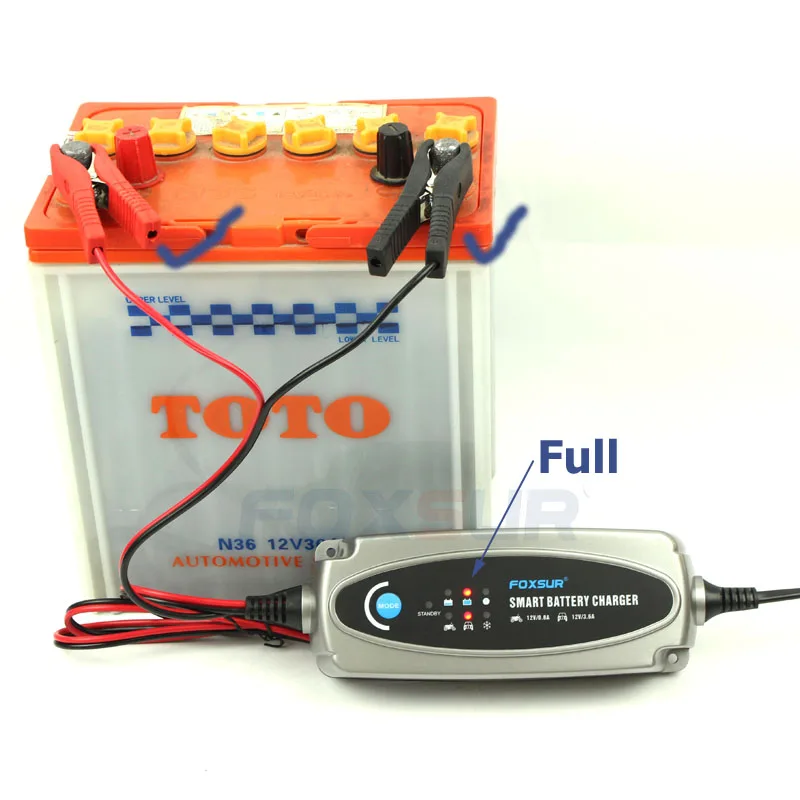

Correct connect for the battery, and charger works well.

Battery Charger

Charging for Motorcycle Battery

AC cable length: 1.5m, DC cable length: 1.4m.

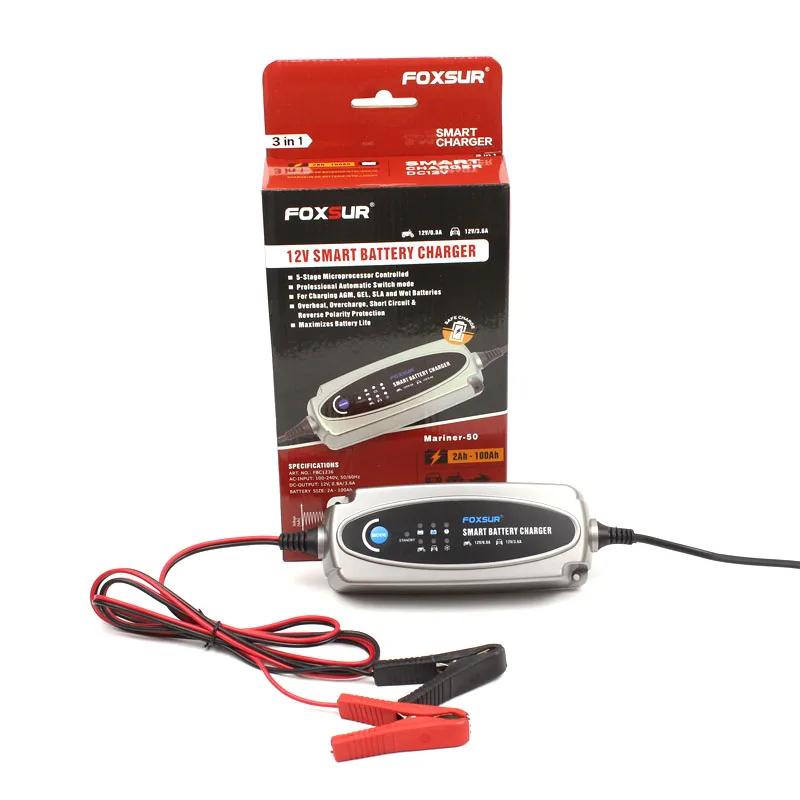

Beautiful box for packing.



Package

Yes

Brand Name

FOXSUR

Type

Electric

Intelligent Charge

Yes

Battery Number

4Ah – 100AH

Model Number

FBC1236

Display screen

No

Quick charge

Yes

AC input

100-240V

Use

lead acid battery
